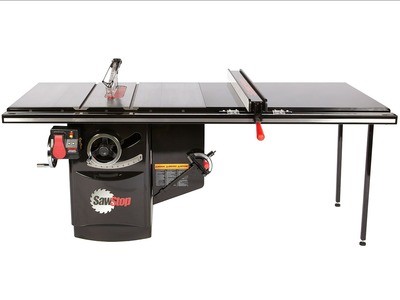

Industrial 5HP SawStop - 10" Tablesaw

SKU ICS51230/ICS53230/ICS53480

$0.00

Fence System Size

52" T-Glide

36" T-Glide

Electrical

1PH 230V

3PH 230V

3PH 480V

Quantity:

Save this product for later

Industrial 5HP SawStop - 10" Tablesaw

Product Details

Brand: SawStop

SawStop Industrial Table Saws - The #1 Table Saw in the World

In-Stock at our warehouse - Pickup Option Available

Along with great quality, SawStop Table Saws are engineered to ensure operators never lose or injure a finger. SawStop's sensor technology immediately stops the saw blade in less than 5 milliseconds when skin comes in contact with it, saving countless fingers. Not only does SawStop save fingers, it saves owners countless hours and money due to workplace injuries. Whether you are a large or small shop, find a variety of SawStop Table Saws to meet your needs.

SawStop's industrial series saws include a 52" T-Glide Fence, but you can downgrade to a 36" T-Glide Fence.

Electrical Options: 1PH 230V, 3PH 230V, 3PH 480V

Included:

(2) CAST IRON EXTENSION WINGS
(1) MITER GAUGE
(1) DUST COLLECTION BLADE GUARD
(1) RIVING KNIFE
(2) BLADE WRENCHES
(1) PUSH STICK
(1) 10” BLADE
(1) STANDARD BRAKE CARTRIDGE
(1) OWNER’S MANUAL
(2) HARDWARE PACKS
(1) 3MM HEX KEY
(1) 5MM HEX KEY
(1) 8MM HEX KEY
(1) BLADE SPACING ADJUSTMENT GAUGE

Specs:

Motor: 5HP

Cabinet footprint: 20" W x 25" D

Cast iron table: 24" W x 30" D

Cast iron table (w/ extension wings): 44" W x 30" D

Extension wings: 10" W x 30" D each

Extension table 36 in: 24" W x 30" D (Optional for $100 less)

Extension table 52 in: 40" W x 30" D

Shipping dimensions (saw body only): 40" W x 40" D x 40" H

Weights - table saw only: 530 lbs

Weights - w/ 36 in fence systems: 635 lbs (optional)

Weights - w/ 52 in fence systems: 685 lbs

Shipping weight (approx.): 640 lbs (table saw only)

Blade: Prof. grade, 5/8" arbor

Blade diameter: 10"

Blade tilt: Left

Blade kerf: 0.118" (3mm)

Blade plate thickness: 0.078" (2mm)

Max. depth of cut, blade at 0º: 3 1/8"

Max. depth of cut, blade at 45º: 2 1/4"

Max. rip, right of blade - 36 in: 36 1/2" (optional)

Max. rip, right of blade - 52 in: 52 1/2"

Max. rip, left of blade: 12 1/2"

Dado diameter: 8" (requires a separate brake cartridge and insert)

Dado max. width: 13/16"

Arbor diameter at blade: 5/8"

Main bearing size: 62mm OD x 30mm ID

Second bearing size: 52mm OD x 25mm ID

Table in front of blade (max. elevation): 10 3/4"

Table behind blade (max. elevation): 10"

Arbor Runout: 0.001" Maximum allowable runout

Table flatness measured diagonally: 0.010" Maximum gap

Blade alignment with miter slot: 0.010" Maximum displacement

Deviation of miter gauge indexing stops from actual: ±0.25º

Alignment between splitter and blade: 0.010" Maximum difference

Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep

Miter slots center: 11 1/8" center-to-center

Miter slots info: 5 1/2" (arbor flange to center of right slot)

Dust collection port diameter: 4"

Riving knife / splitter thickness: 0.090" (2.3 mm)

Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside

Insert: zero clearance, phenolic core, melamine surfaces

Hand wheels: 8" diameter, cast iron w/ chrome handle

Belts: 2 V-ribbed belts

Overall saw dimensions: 44" W x 34" D x 34" H

Overall saw dimensions 36 in: 69 1/4" W x 36 1/2" D x 34" H

Overall saw dimensions 52 in: 85 1/4" W x 36 1/2" D x 34" H

Motor configuration 1: ICS31230: 3 HP, 1 phase, 230v, 13 A

Motor configuration 2: ICS51230: 5 HP, 1 phase, 230v, 19.7 A

Motor configuration 3: ICS53230: 5 HP, 3 phase, 230v, 12 A

Motor configuration 4: ICS53480: 5 HP, 3 phase, 480v, 5.8 A
