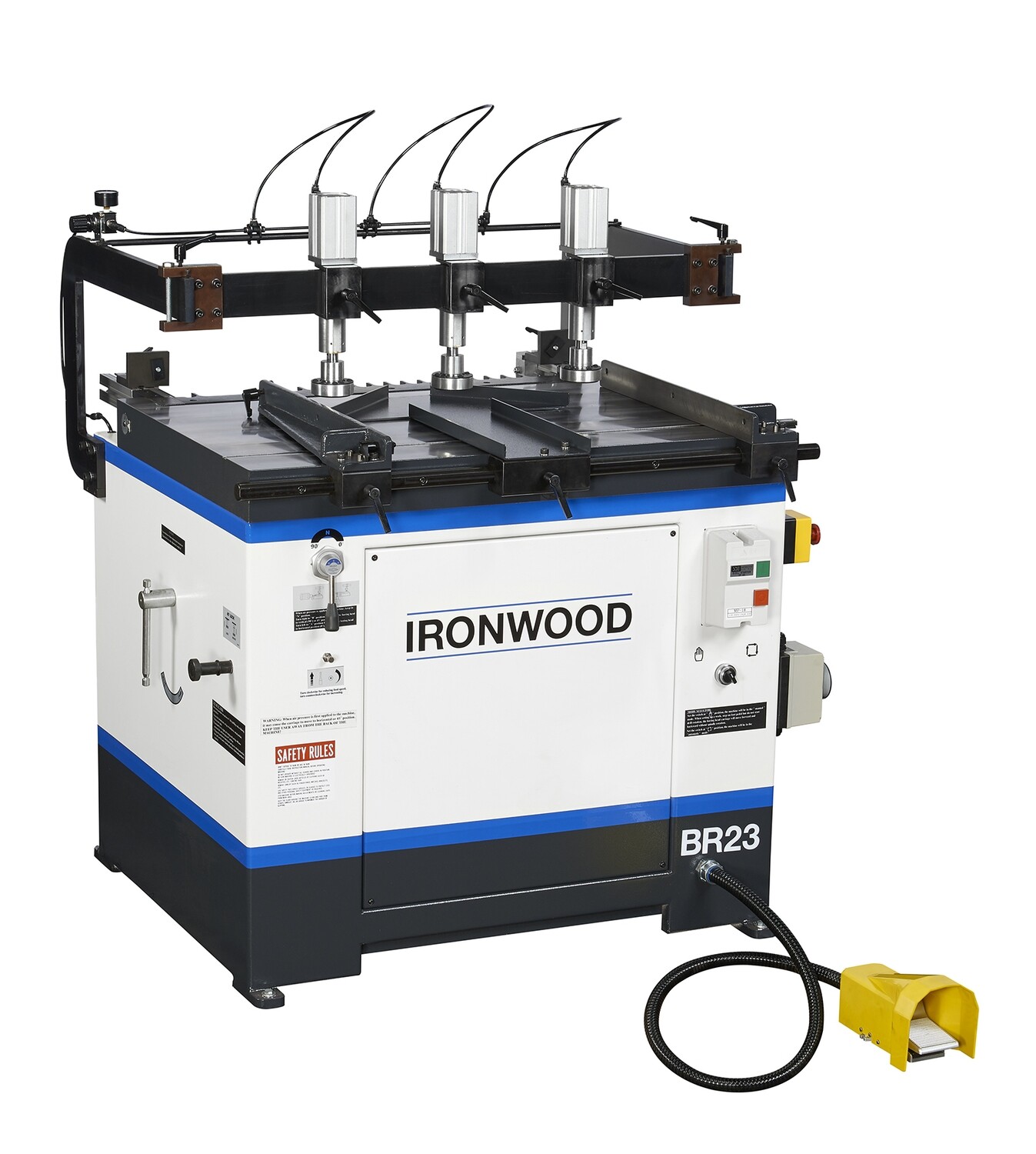

Ironwood Construction Boring Machine
Product Details
Brand:
Ironwood
Ironwood Construction Boring Machine - Horizontal & Vertical
The Ironwood BR23 Construction Boring Machine is built to drill single or multiple rows at once and is ideal for larger manufacturers of closets and cabinets. The BR23 has the following features that set it apart from other boring machines:
- Digital Read-Outs
- Large Working Surface
- Three Quick-Release Pneumatic Clamps to firmly secure workpieces
- Pneumatic Tilt-Lock and Tilting Controls
- Mirror-Imaging Device
- 23-spindle single-head boring unit, pitch 32mm, for horizontal and vertical drilling
- Pneumatic head rotation from 0° to 90° with locking points for quick set-up at 0°, 45°, and 90°
- Accurate positioning of boring unit is easily obtained through digital readout adjustments
| Boring Head Spindles | 23 |
| Center Distance Between Spindles | 32 mm |
| Working Width | 704 mm |
| Motor Power | 3 HP |
| Working Table Size | 21.65" x 37.4" (500 x 950mm) |
| Max Boring Depth | 3.94" (100mm) |
| Table Size | 23.5" x 25" (597mm x 635mm) |
| Adjustable Boring Stroke | 1.97" - 3.94" (50-100mm) |
| Position Adjustment of Boring Unit | 0 - 2.36" (0-60mm) |
| Max Workpiece Thickness | 7.08" (180mm) |
| Quick Chucks Included | 23 |
| Spindle Speed | 3450 RPM |
| Air Requirement | 90 - 100 PSI |
| Machine Power | 1PH 230V |
| Machine Weight | 660 lbs |
| Workspace Requirement | 41" x 59.5" x 53" |
