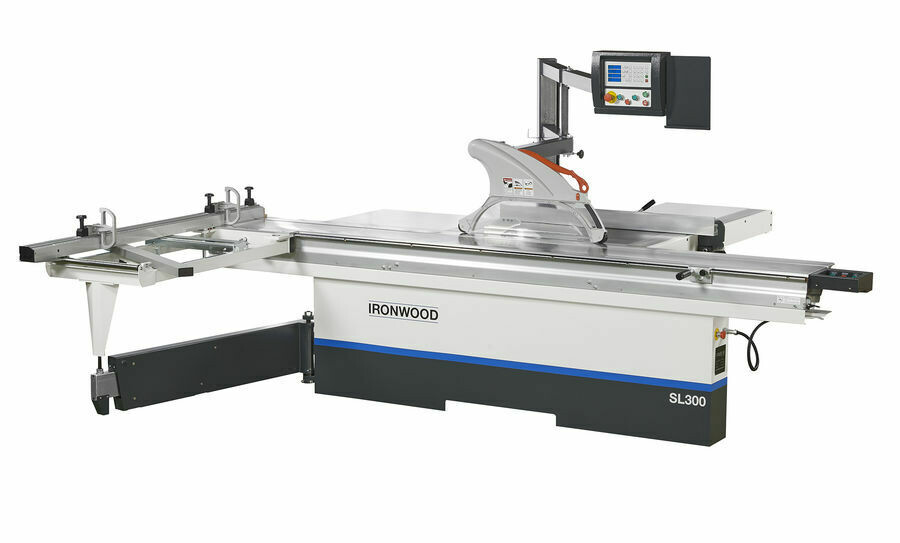

The new Ironwood Series Sliding Table Saws feature top of the line quality and features at economical prices. Designed to be a blend of innovation, dependability, and quality, the SL series delivers the quality and precision required for the final chip-free cut, improving the results of subsequent machining (i.e. edgebanding, drilling, etc.). This reduces assembly time, as parts fit easier, material costs are reduced, and the need for other machinery can be eliminated. Ideal for panel and solid wood processing, the series is capable of making perfect miters, as well as rip, jointing, and cross cuts.
The SL Series features aircraft grade aluminum sliding tables manufactured in Europe with perfected, vertical guidance for accurate, square cuts over the full cutting length. The sliding table’s smooth and precise movement reduces operator fatigue and is totally maintenance free. The chrome hardened guide-rails ensure that the sliding carriage traverses straight without lateral movement.
Specs:
| Model Specs | SL100 |
SL200 | SL300 |
| Sliding Table Length | 126" | 126" | 126" |
| Main Motor (IE3) | 5 hp | 7.5 hp | 7.5 hp |
| Max Saw Blade Diameter | 14" (355 mm) | 14" (355 mm) | 16" (400 mm) |
| Blade Projection 90° | 3.93" (100 mm) | 3.93" (100 mm) | 4.8" (125 mm) |
| Blade Projection 45° | 2.75" (70 mm) | 2.75" (70 mm) | 3.34" (85 mm) |
| Blade Rise/Fall Adj. | Manual | Manual | Motorized |
| Tilting Range | 0-45.5° | 0-45.5° | 0-45.5° |
| Tilting Adjustment | Manual | Manual | Motorized |
| Scoring Adjustment | Manual | Manual | Motorized |
| Rip Capacity | 51" | 51" | 51" |
| Rip Adjustment | Readout | Manual | Scale | Manual | Digital | Motorized | Digital |
| Crosscut Fence | Fixed | Crosscut Miter | Crosscut Miter |
| Flipstop Adjustment | Manual | Manual | Manual |
| Angle Capacity (crosscut) | N/A | 0-49° | 0-49° |
| Max Distance | 126" | 126" | 126" |
| Machine Weight | 1,565 lbs. | 2,425 lbs. | 2,425 lbs |
