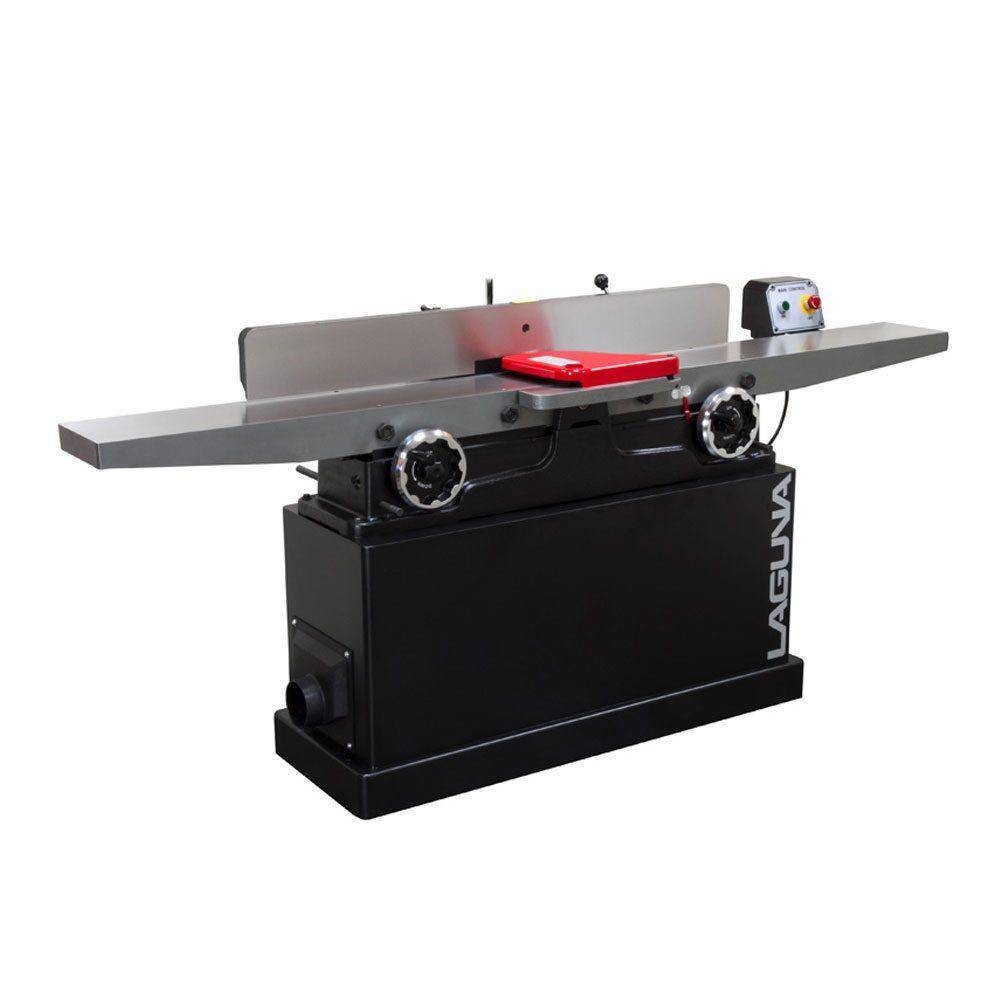

Laguna 8" JX8 Sheartec II Jointer - Parallelogram

The Laguna 8" Parallelogram Jointer includes a support system which allows the table to move in the same arc as the cutterhead when raised or lowered. This uniform, close clearance to the cutting blade acts as a more efficient chip breaker. This model includes an extra long cast-iron fence and 83" long table for extra, continued support. Features the ShearTec II Knife System with 4 Sided German Carbide on 6 rows.

Features

• Motor: 3 HP, 220 Volt, 1 Phase, TEFC
• Motor Amperage Rating: 13A
• Cutter-Head RPM: 5000RPM
• Adjustment: Parallelogram w. Crank
• Max. Width: 8”
• Max. Depth: ½”
• Rabbeting Capacity: ½”
• Knife System: Shear-TecII
• 4 Sided Carbide 6 Row X 9 = 54
• Cutter-Head Diameter: 3”
• Table Dimensions: 8” X 83”
• Fence Dimensions: 4 ¾” X 40”
• Fence Tilt: 90° & 45° with Positive Stop
• Table Height: 33”
• Dust Port: 4”
• Wheel System: Built-In
• Weight (Net/Ship): 648/750 Lbs.
