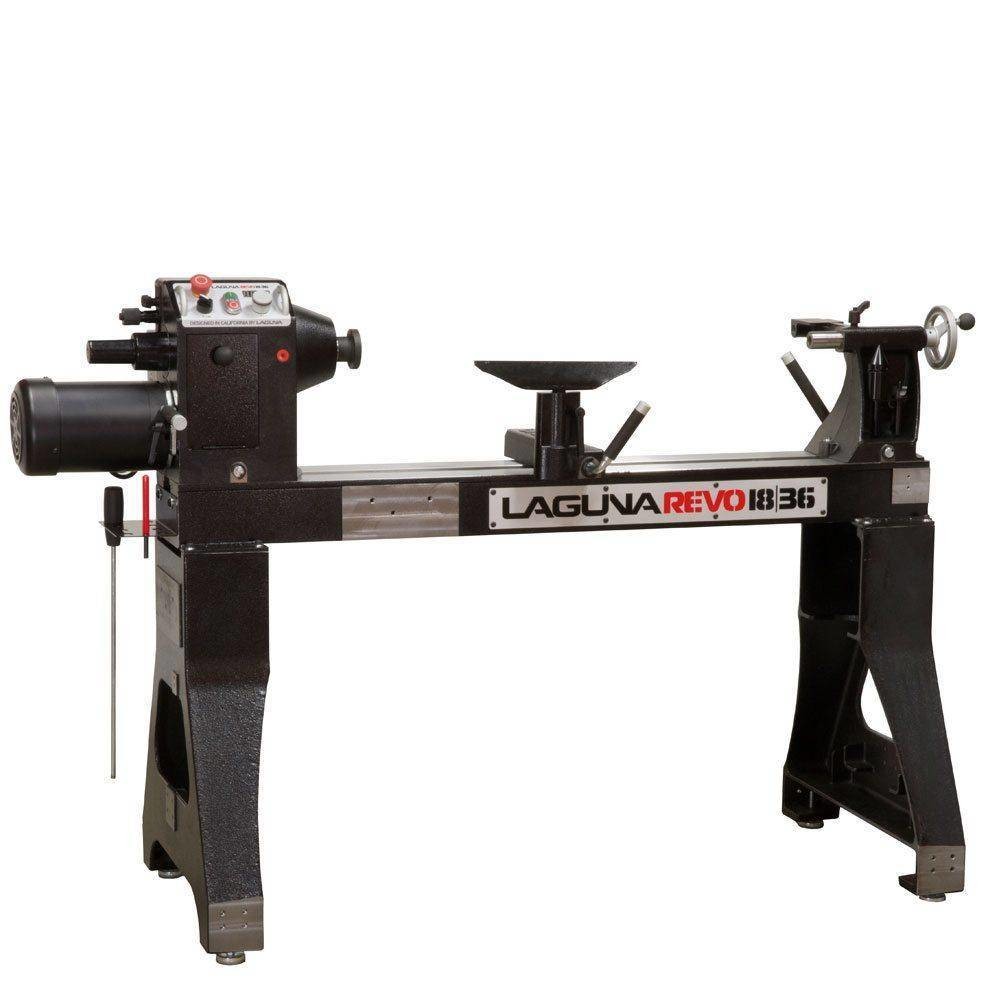

Revo 18 | 36 Lathe
Product Details
The Laguna Revo 18 | 36 Lathe is built for durability, power, and smooth wood turning. The bed is made from steel which allows the cast iron headstock to travel smoothly. The DRO gives an accurate RPM readout at all times, and adjustments are made electronically. The quick release handle makes it easy to change from high to low settings. The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.
Features
- Electrical: 1.5HP, 110 Volt, 60 hz
- Motor: Induction, 1725 RPM, TEFC
- VFD: Delta S1 Variable Frequency Drive
- Phase: 1 Phase input, 3 Phase output
- Poly-Groove Drive Belt w EZ Access
- Recommended Breaker: 20 Amp
- Spring Loaded Spindle Lock
- Max. Outboard Swing: 32”
- Swing over Banjo: 13 ½”
- Steel Bed: ASTM A36
- Toolrest Post Size: 1”
- Spindle Taper: MT#2
- Swing over Bed: 18”
- RPM High:135-3500
- RPM Low: 50-1300
- Tailstock Quill: 4 ½”, Engraved, Self-Ejecting
- Floor to Spindle Center: 41 ½” w Pads
- Spindle Index #: 14/36/48 w Lock
- Distance between Centers: 36”
- Headstock Through-Bore: 3/8”
- Headstock Travel: Full Length
- Tailstock Through-Bore: 3/8”
- Tailstock Storage of centers
- Spindle Size: 1 ¼” X8 TPI RH
- Floor to Bed: 32 ½” w Pads
- Floor Space: W 60” D 26” H 47”
- Weight (Ship): 480 Lbs. Net Weight: 427
