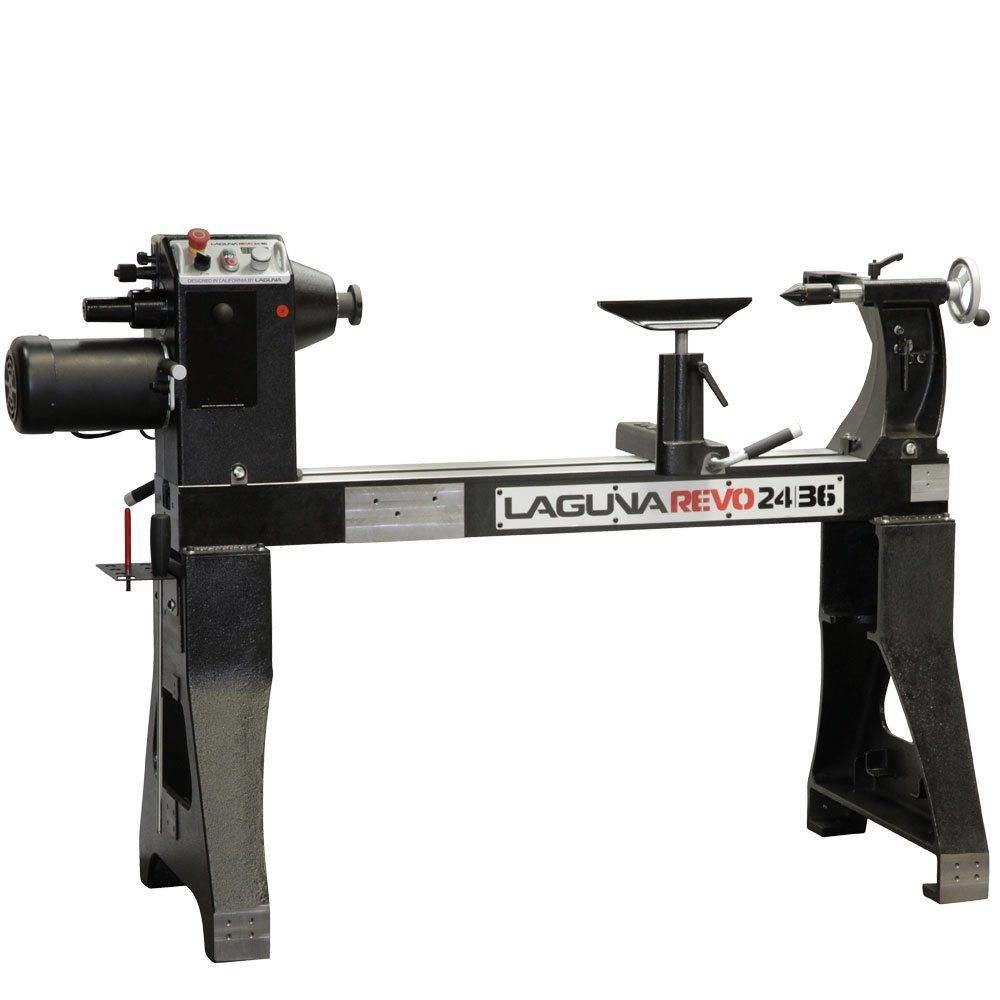

Revo 24 | 36 Lathe
Product Details
Laguna Revo 24 | 36 Lathe 220V
Save on shipping and schedule a pickup at our warehouse
The Variable Speed, 3 HP Laguna Revo 24 | 36 Lathe is built for durability, extra power, and smooth wood turning. The bed is made from steel which allows the cast iron headstock to travel smoothly. The DRO gives an accurate RPM readout at all times, and adjustments are made electronically. The quick release handle makes it easy to change from high to low settings. The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow.
Features
- Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
- Phase: 1-Phase Input, 3-Phase Output
- Recommended Breaker Size: 15 Amp
- VFD: Delta S1 Variable Frequency Drive
- Remote Control Box w/Speed Settings
- Two Ergonomic Control Panel Positions: High/Low
- Drive Belt: Poly-Groove with EZ Access
- Tailstock Quill: 4½”, Engraved, Self-Ejecting
- Floor to Spindle Center: 44½”
- Front Bearing: TPI Taiwan 6307LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Index#: 14/36/48 w/Lock
- Distance Between Centers: 36″
- Headstock Through-Bore: ⅜”
- Headstock Travel: Full Length
- Tailstock Through-Bore: ⅜”
- Tailstock Storage of Centers
- Toolrest Post Size: 1”
- Spindle Size: 1¼” X 8 TPI RH
- Floor to Bed: 32½” with Pads
- Spring Loaded Spindle Lock
- Max. Outboard Swing: 38″
- Swing over Banjo: 19¾”
- Face Plate: 3″ Diameter
- Tool Rest: 12″
- Steel Bed: ASTM A36
- Headstock Spindle: MT2 taper hardened to 40° HRC
- Tailstock Quill: MT2 taper hardened to 40° HRC
- Swing Over Bed: 24″
- RPM: High: 135-3500 Low: 50-1300
- Dimensions: 60″ W x 26″ D x 52¼” H
- Weight for 220V (Ship): 610 Lbs.
- The basic dynamic load rating is 30% higher than a 6207 ball bearing.
- Wall thickness of legs has been increased 80% over the Revo 18|36.
- Redesigned banjo features more compact design, 45˚ cutout, wider base, increased eccentric rod diameter and larger hanger resulting in a more solid feel when locking in place.
